Wireless Cable: MMDS and ITFS (with Santa Barbara Operators)

While the "Wireless Cable" bands are not directly availble to the smaller users that tend to use ISM band communications, they are of interest nevertheless, for several reasons: For these reasons, we are including this page of information.

ITFS and MMDS

Overview of the band

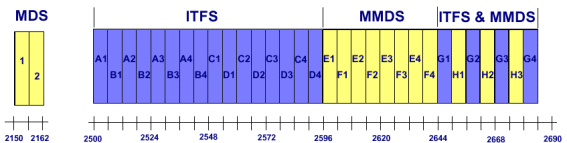

As this picture (from from http://www.fcc.gov/wtb/auctions/summary/bandplan.html#mds) shows, MDS, ITFS and MMDS are really one set of licensed spectrum, sharing a common history and on frequencies close enough to have similar characteristics. These channels were originally allocated for "wireless cable television" - encrypted local rebroadcast of commercial video networks to paying subscribers (MMDS) and closed-circuit feeds of university lectures to educational classrooms in the community (ITFS). The rapid rise of direct-broadcast sattelites soon after these bands were licensed but before significant buildout had occurred, made the original purpose of the bands obsolete (not commercially viable), and the FCC amended the rules to allow two-way communication.

The two old MDS channels at 2150-2162 MHz have been reallocated as MMDS, (except that MDS channel 2 has been truncated to 4MHz (2156-2160 is now identified as channel 2A) and 2160-2162 is reserved for "emerging new services". The 20 channels of ITFS and 11 channels of MMDS are really one service, where the ITFS channels are reserved for non-profit and educational use while the MMDS channels were auctioned off in 1996. Because the channels are interleaved, the 6MHz channel width is stringently enforced. Each user gets up to four 6MHz channels.

The detailed rules of what can be transmitted in ITFS and MMDS bands are outlined in NPRM 97-360 (101 page PDF file) chich can be found at http://www.fcc.gov/mmb/vsd/itfs/itfshot.html.

Users in Santa Barbara

This list comes off the FCC database. This market area is designated as Basic Trading Area 406 (Santa Barbara and Santa Maria). The auction database indicates that an entity designated as Wireless Telecommunications, Inc. paid $1.1M for a license.

UCSB
Call Sign, facility ID, ServiceWAQ323 / 66324 / VX
AddressUC Regents, 2200 University Avenue, Berkeley, CA 94720
ChannelsA1, A2, A3, A4
Expires12/20/2006

Archdiocese of LA
Call Sign, facility ID, ServiceWHR839 / 2662 / VX
AddressArchdiocese of LA, Education and Welfare Corp, 3424 Wilshire Blvd, Los Angeles CA 90010
ChannelsD1, D2, D3, D4
Expires 6/10/2007

Mester's TV
Call Sign, facility ID, ServiceWLK217 / 301039 / MD
AddressJohn Mester, 682 Argyle Road, Brooklyn, NY 11230
ChannelsE1, E2, E3, E4
Expires 5/01/2001 (Assigned prior to 1996 auction)
Transmitter SiteGibraltar Peak

Mester's TV
Call Sign, facility ID, ServiceWNTA868 / 301834 / MD
AddressJohn Mester, 682 Argyle Road, Brooklyn, NY 11230
ChannelsH1, H2
Expires 5/01/2001 (Assigned prior to 1996 auction)
Transmitter SiteGibraltar ("4.8km NW of Montecito")

Mester's TV
Call Sign, facility ID, ServiceWMX215 / 301564 / MD
AddressJohn Mester, 682 Argyle Road, Brooklyn, NY 11230
ChannelsH3
Expires 5/01/2001 (Assigned prior to 1996 auction)
